Cardiogenic pulmonary edema

Study the finding, then test the visual cue against the linked Review and Q-Book material.

View current live plate ↗

THE PLATE02 / 02

IMAGE 01 · 1920 × 1108 px · Cached rendition

Cardiogenic pulmonary edema

Source ↗Original at source ↗Download local file ↓

Source, credit & reuse

Source description identifies a chest X-ray of pulmonary edema with congestion overlays; exact cardiomegaly, cephalization, Kerley lines, and bat-wing distribution remain unconfirmed.

Moustafa A. Mansour · CC BY-SA 4.0 · inherited_catalog_not_refetched

License record ↗ · Media ID MED-58c28d45e3db54187730

IMAGE 02 · 330 × 330 px · Cached rendition

Cardiogenic pulmonary edema

Source ↗Original at source ↗Download local file ↓

Source, credit & reuse

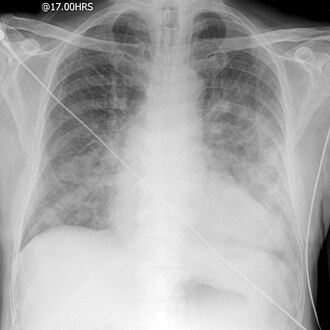

Source description identifies an AP portable chest radiograph of acute pulmonary edema; exact requested CHF pattern remains unconfirmed.

Frank Gaillard , Jeremy Jones · CC BY-SA 3.0 · inherited_catalog_not_refetched

License record ↗ · Media ID MED-7b513c93aca001f1b1be

01 / WHAT MATTERS ON THE EXAM

Cardiogenic pulmonary edema: cardiomegaly, vascular cephalization, Kerley B lines and perihilar 'bat-wing' opacities.

02 / WHAT TO LOOK FOR

Pulmonary edema: cardiomegaly, cephalization, Kerley B lines, bilateral perihilar (bat-wing) opacities

03 / WATCH OUT FOR

Hypertensive pulmonary edema may reflect rapid fluid redistribution; when blood pressure permits, prompt noninvasive ventilation and vasodilation can matter more immediately than waiting for diuresis.
